    150 mm Diameter Pita Production Line With Tunnel Oven and Cooling System

    Ask Lasest Price
    Brand Name : ZLINE
    Model Number : ZKS900
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A
    Supply Ability : 5 sets per month
    Delivery Time : 50 days
    Certification : CE
    • Product Details
    • Company Profile

    150 mm Diameter Pita Production Line With Tunnel Oven and Cooling System


    150 mm Diameter Pita Production Line With Tunnel Oven and Cooling Tower

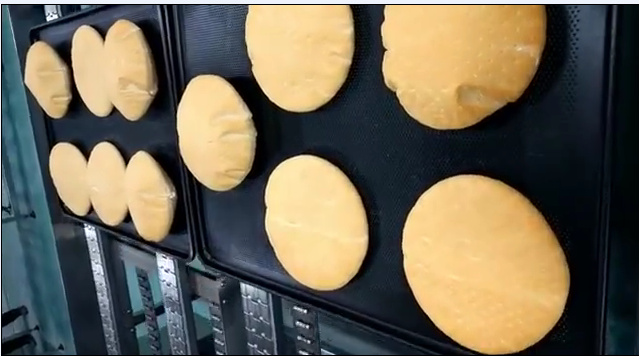

    1. Production line description


    ZKS900 Pita production line is an industrial one for high capacity pita bread production , the line is also suitable to produce pizza base and other flat bread , the tunnel oven and cooling tower are available for complete pita line project


    2. parameters of pita making machine


    Capacity500 - 2500 kg / h dough
    Pita size100 - 200 mm dia
    Dough sheet thickness2.5 - 10 mm
    Pita weight75 - 150 g
    Belt width850 mm at the end of the line
    Rows4
    Dough sheet widthMax.800 mm at the end of the line
    Baking temperature250 ℃ - 400 ℃
    Baking time1- 3 min
    Baking typeFuel gas - fired
    Cooling tower dia3.8 meters
    Cooling timeApprox. 25 min , air nature cooling

    3. Key features


    1 ) The line can be configured differently for different pita size and thickness .

    2 ) The pita cutting roller can be custom-tailor for different shape of pita , round or ellipse .

    3 ) Dough sheet thickness can before baking is between 2.5-5 mm .

    4 ) The complete line can be controlled by the PLC touch panel ,altogether or singly .

    5 ) The normal baking temperature would be 350℃ ,Maximal up to 400℃ .

    6 ) The complete pita line is been made by high quality 304 stainless steel .

    7 ) The dough scrape can be automatically removed away and recyclable


    4. Configuration details


    No.ItemsBrandCountry
    1Conveyor beltAiAi PU beltItaly
    2BearingINAGermany
    3Bearing seatFAGGermany
    4MotorGermany
    5PLCSiemensGermany
    6Servo motorSiemensGermany
    7Touch screenSiemensUK
    8Frequency convertorDanfossGermany
    9Swiching powerSiemensSwitzerland
    10Low- voltage componentSchneiderFrance
    11Approach switchOmronJapan
    12Stainless steel304China

    pita line


    Pita production line tunnel oven
